DAMS Tortilla Production Line-41691

Product Code: DTPL-TP60

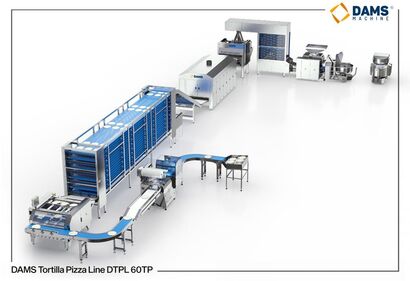

TECHNICAL DETAILS OF EQUIPMENTS

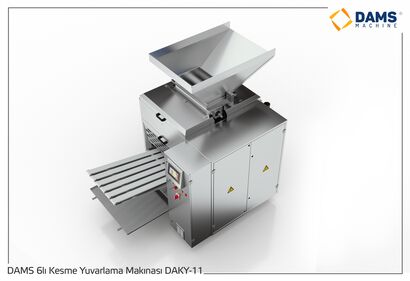

DIVIDER & ROUNDER



Upto 7000 pcs/hour capacity
Weight range 40-140 grams (±2 gr)
4 pieces 50mm diameter pistons
Changable outer drum for different weights
4 rows outlet belts
Automatic oil lubrication
Variable speed controlsfor main drive and rounding unit
Flour duster
Dough bunker capacity is 140 kg
Safety switches on doors
Total power 5 kW
7 inc HMI Touch Panel
PLC control

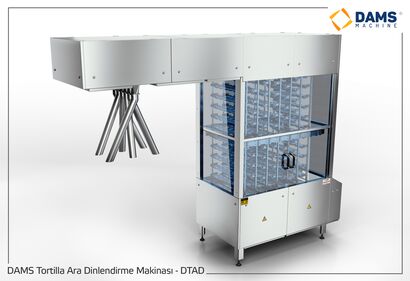

INTERMEDIATE PROOFER

Proofing time 10 minutes (for 4000pcs/hour)
4 pockets stainless steel dough carrier tray
146 pieces active tray
584 active pockets
Removable and washable UHMWPE mesh pockets
2″ roller chain for tray transport
Main frame is stainless steel tube
Total power 1.1 kW
Easy Access for maintenance
Safety switches on doors

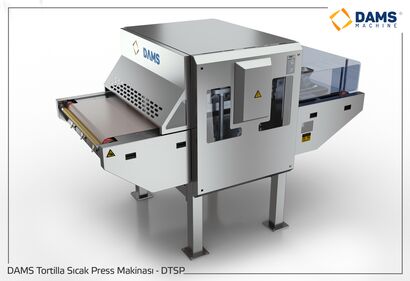

TORTILLA PRESS

750x750 top and bottom aluminum press platens
Product diameter range; Ø18cm- Ø30cm, Precision ±2cm
14 strokes per minutes
Presses 4 products in a stroke
24 kW total heating capacity provided by cartridge heaters
PID Temperature controller for optimum heat management
Multi Zone heated press plates
Pneumatic pre-forming unit
Movable upper plate with precise ball screw drive.
Ball screws are drived by servo motors for best accuracy
Product diameter and plate temperature can be changed on HMI touch screen
Teflon press belt with pneumatic auto-tracking device
Heavy duty main frame
Total power 32 kW
Product diameter range; Ø18cm- Ø30cm, Precision ±2cm
7 inc HMI Touch Panel
PLC control

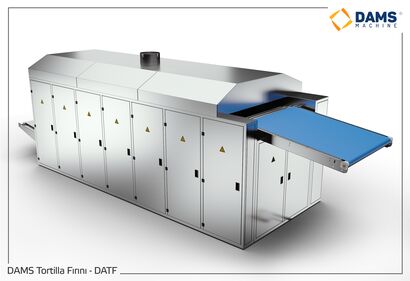

OVEN & OVEN FEEDING CONVEYOR

Slat type conveyor, supported 1 ” roller chain
The fire place is provided with a heat resistant conveyor for transferring the dough to the baking chamber
The oven cover is made of stainless steel, Insulated by a layer of glass insulation (special type) to minimize heat leakage to the outside
The oven is isolated with 30 cm from both sides for power saving and reducing heat leakage to outside.
9 mt long, 750mm wide total baking surface (3mt, 3 floor)
3 longidutional burner per floor, total 9 burners
Each floor temperature can be adjusted individually
Each floor conveyor has a motor drive and speed can be adjusted individually
Tortillas slide to bottom floor by stainless steel finger sliders
Total power 6 kw


COOLING CONVEYORS

Stainless steel frame
Inclined modüler infeed belt with non-slip grip top
750mm wide, open frame modüler belt for efficient cooling
Hingh density PE belt supports
Total 35mt active cooling lenght, (7 floor X 5mt long)
4 minutes cooling time
Product inspection part on lastfloor
Total power 3 kW
COUNTER-STACKER

Robust Stainless steel frame
2 row of production
3500 pcs/hour capasity per row
750mm wide infeed belt, non-slip silicone coated
Adjustable infeed belt height
Counts and stacks 6 to 20 pieces depending on thickness
Changable chutes for straight stacking (OPTIONAL)
Pneumatic stack discharge
HMI touch screen
FDA approved food contact surfaces
Outlet conveyor for packaging machines
Total power 2 Kw
7 inc HMI Touch Panel
PLC control
MODULER CURVE CONVEYOR

Stainless steel frame
Curve moduler belt
350mm wide
Hingh density PE belt supports
Total power 0,37 kW
