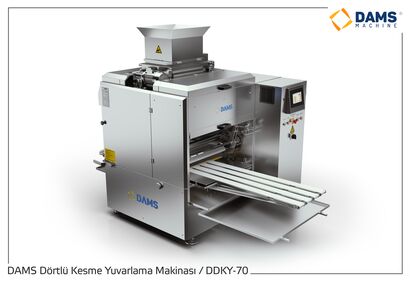

DAMS 4 ROWS DOUGH DIVIDER ROUNDER / DDKY-70-48710

Product Code: DDKY-70

Technical Specifications
Machine Width 1480 Mm Voltage 220 V
Machine Length 2200 Mm Current 25 Amper
Machine Height 1840 Mm Frequency 60 Hertz
Machine Weight 1700Kg Max. Power 7 kW
Capacity (Maximum) 7.000 Pcs / H Average Power 6 Kw
General Specifications
• The settings are made easily from the PLC-controlled touch screen.
• Mechanical settings are simple to use and easy to learn.
• Information on usage can be stored in memory and used continuously.
• Daily cleaning is easy.
• It is easy to disassemble, install and replace belts and running parts.
• The speeds of all belts can be adjusted to the desired level.
• Electrical and electronic faults that may occur are displayed on the PLC screen with pic and text.
• In case of malfunction, remote access can be performed with PLC program (Optional)
Cutting Section
• Machine body is 304 crom. The contact surfaces of the dough are 304 crom and crom coating.
• Different outer drums are used for dough cutting in these weight ranges.
• Average roll bread dough cutting and rounding capacity is 7000 in 1 hour.
• Since very little flour is used in the dough section, it provides a clean working environment.
• The amount of flour given to the cut dough can be adjusted.
• The lubrication system is automatically adjusted during the dough cutting process.
• Unlike other machines, it does not wear pulp due to non-pressurized cutting.
Piston diameter Ø45 mm Ø48 mm Ø 50 mm Ø 55 mm Ø 60 mm Ø 65 mm
Dividing range 25-90 gr 30-115 gr 40–140gr 50–160gr 60–180gr 70–220gr
Various external drums are used to round off the dough in these ranges. Changing the external drums is easy, within a few minutes.
Note: Since there are pneumatic pistons on the machine, air of minimum 4 bar pressure is required for the operation of the machine. 5 * 2.5 multiple cables must be use for electricity.In order to prevent damage to the automation products used in the machine, a suitable regulator is recommended to prevent voltage fluctuations in electricity.
