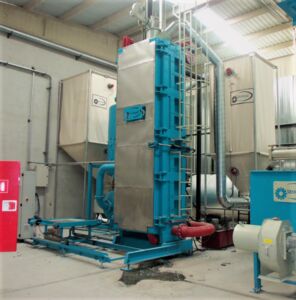

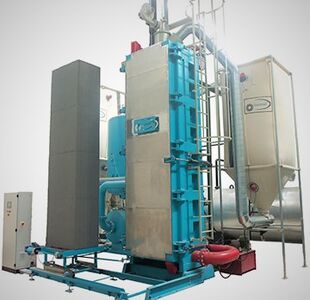

EPS Block Machine (EPS Automatic Vertical Blockform Machine)-37800

Product Code: DBM-4000

Possibility to make production in a density between 8-40 kg/m³.
Operated with vacuum and without vacuum.
Easy access to machine production equipments.
Material filling silo.
The ability to quickly fill with vacuum filling system.
Special seal design to eliminate steam leaks.
Material pressure monitoring system to shorten the machine waiting time.
Stainless steel steaming plates.
Pressure safety valve.
Easy to clean plate system.

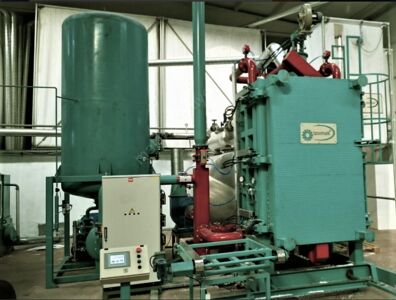

Technical Specifications for IZOMAK DBM-2000
Moulding Dimentions (LxWxH) : 2000x1000x600 - 2000x1200x1000
Steam Working Pressure : Max 1.2 bar
Steam Consumption : 15-25 kg/cycle - 30-50 kg/cycle
Air Working Pressure : 6 bar
Total Power : 10.85 kW - 13.05 kW
Capacity : 20-22 block/hour - 18-20 block/hour

Technical Specifications for IZOMAK DBM-4000
Moulding Dimentions (LxWxH) : 4000x1000x600 - 4000x1200x1000
Steam Working Pressure : Max 1.2 bar
Steam Consumption : 30-50 kg/cycle - 60-100 kg/cycle
Air Working Pressure : 6 bar
Total Power : 13.05 kW - 16.55 kW
Capacity : 18-20 block/hour - 15-17 block/hour
