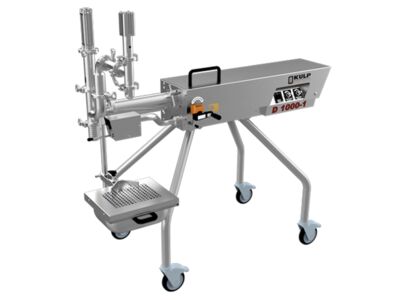

KULP Semi Automatic Filling Machine-18605

Product Code: D-1000

Which products you may fill with this machine?
Liquid Products

Semi Liquid Products

TECHNICAL SPECIFICATIONS

* Works with pneumatic system.
* Primes the product from the storage tank by directly.

* Interchangeable nozzles for liquid and semi liquid products with anti dropping system .
* There is a heigth adjustable platform on the filler to place the packages during the filling process.
* The machine is exproof system.
* The seals are manufactured from teflon ,viton or polyethylene according to the product to be filled.
* The parts on the machine are connected by tri –clamps.

*The nozzle, main valve and the filling piston are designed for an easy-cleaning .They can be dismantled easily without using any tool.
* High surface smoothness and argon arc welding technology prevents bacteria growth.

*The machine stands on a stainless steel frame which is supprted by 4 castors, it can be easily move to anywhere.
* Easy to adjust and record the filling range by the numerator and the hand wheels.
* A detailed instruction manual for each model is available.

NUMBER OF CYLINDERS: 1

FILLING RANGE: min:100 ml - max:1000 ml

CAPACITY : 720 packages/hour

MATERIALS USED ON THE FILLER

* The parts that contact with the product are 316 L stainless steel. The other parts are aluminium and 304 L stainless steel.

OPERATING TEMPERATURE : +5º - +90º

FILLING ACCURACY : ± %1
