Post Hole Digger-28920

Product Code: AT-PDH SERIES

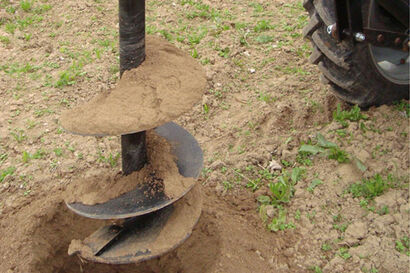

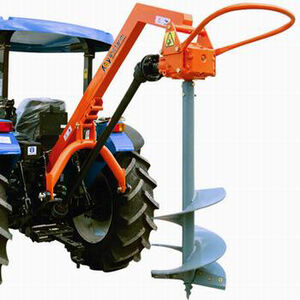

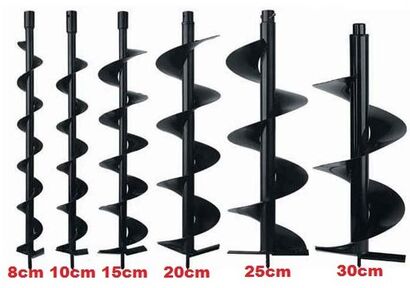

Hole Digger mainly consists of power head, PTO shaft and auger. The auger consists of a screwdriver bit on the auger tip, with threads on the auger tip. Simple structure, effectively speed working, more powerful drill ability, low operating cost, high flexibility. Hole Digger can be easily mounting to the tractor with the three-point hitch connection. You can quickly and economically drill holes depth is 850-1000 mm and with selected auger diameter of 20-30-45-60 cm. Hole digger is used for tree planting in columns, vineyards or structure etc. In suitable landscapes, you can dig approximately 40 holes for 300 mm diameters per hour, 30 holes for 450 mm diameters and 15 holes for 600 mm diameters per hour with our AT-PDH20 model.

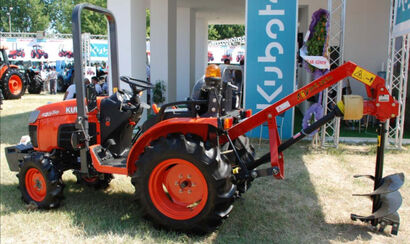

The model AT-PDH10 post hole digger is suitable for 15-40 HP sub compact tractors equipped with a category-1N 3-point hitch connection and a 540 RPM PTO.

Spiral bevel gearboxes are equipped having 2.92:1 gear ration and PTO driveline with over load protection clutch.
