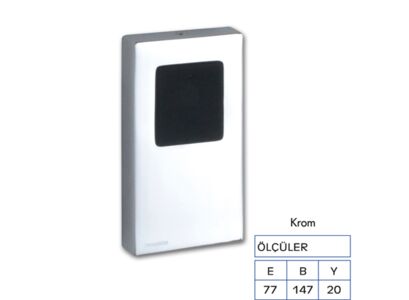

CARD READER MODULE (WALL TYPE)MODERNA-D-1073

Product Code: AB-KKS17

• RFID Mi-FARE 13.56 Mhz. contactless card lock system reader module that reads from wall (optional TCP-IP RF online)
• Produced with optional metal coating on braas metal component that does not contain zinc alloys.
• Red and green for “Do Not Disturb” and “Clean the Room” massages LED warnings (optional)
• Bell Button (optional)
• Bell prevention function on busy mode
• Suitable to activate electromagnetic locks that are equivalent of electronic lock, and all fully automatic door opening and closing systems.
• Can operate in 0-65°C, 10-90%Rh (non-condescending humidity) environment conditions.
• 10-14 VDC operating voltage
• Static current 50 mA, operating current 2A max.
• Has 800 opening memory. (card type, card no, date, time vs.) Transfers those information to information retrieval devices as IR
• Compatible with all Brassco Card Lock Software versions.
• 200 user capacity reader option for using without software in offices (optional)
