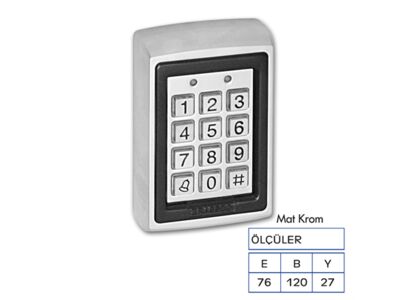

PASSWORD CARD READER BKS 501-1078

Product Code: AB-EKKM1

• Entrance control unit that has 125Khz 26 bit EM contactless RF card reader and password with 500 different user capacity
• Metal matt chrome coated body and keys.
• Can be used for only password, only card or password + card entrances.
• Normal or secure use settings, 3 staged security levels.
• Suitable for both indoor and outdoor use.
• Internal alarm that is triggered when dismantled.
• Inerasable metal keys with backlight
• Internal bell button, slot for opening from inside button.
• Output relay timing that can be set 1-9 sec.
• Easy programming, add/delete people, password/card cancellation, identifying new password/card
• Audible and light warning
• 5A 12VDC relay output current No NC relay outputs
• Operating voltage values; 12 VDC 40-120 Ma
• Can operate in 10-60C, 0-95% (non-condescending humidity) environmental values.
• Static current 25 uA, operating current 130 mA max.
