Flexible Air Ducts-22576

Product Code: 9

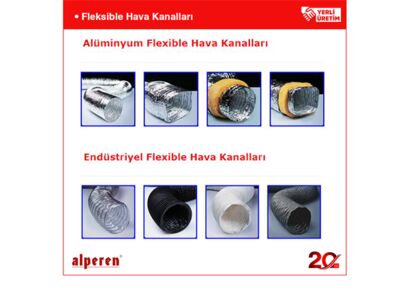

Flexible Air Ducts
Flexible air ducts are made of aluminum foils or flexible PVC raw material wrapped around steel steel wires. Flexible ventilation ducts don't take up much space as they are shaped as required.
They are used as air flow lines between ventilation ducts and plenum boxes in spaces where stainless, galvanized sheet, aluminum, polyurethane or other types of ducts cannot be used.
Insulated and uninsulated models are available.
Insulated air ducts are covered with 25-mm-thick and 16kg/m3 density glass wool and they are placed in a fiberglass reinforced, aluminum+polyester laminated jacket which which prevents contact with air and condensation. Insulated flexible air ducts are insulated against sound and heat.
The flexible ducts, which are also called flexible air ducts are operable under the temperatures of -30o C/+140 oC and 2500 Pa, 30 m/sec.
Flexible air ducts do not emit toxic gases during fire. They are safely used in heating, cooling, ventilation and air conditioning installations.
Aluminum (Flexible) Air Ducts
Aluminum flexible air ducts are uninsulated multi-purpose flexible air ducts used in heating, cooling, ventilating, air-conditioning and exhaust gas systems operating under low and medium pressure. They are made of aluminum material reinforced with spiral high-voltage steel wire. Uninsulated aluminum flexible air ducts are airtight.
Uninsulated flexible aluminum air ducts are extremely flexible, bendable and compressible. They are easy-to-assemble at oval, round and corner joints. Rectangular flexible air ducts are the same with flexible aluminum air ducts and they only differ in shapes. Diameter range of flexible air ducts made of aluminum is Ø52 / Ø800 mm. Their operating temperature ranges between - 30 ° C / +150 ° C. Their nominal length is 10 m.
Heat Insulated Aluminum (Flexible) Air Ducts
Heat insulated flexible air ducts made of aluminum are used in low or medium pressure heating, cooling, ventilation and air conditioning systems. The heat insulated flexible air duct series manufactured from multilayered and laminated aluminum material reinforced with high voltage spiral steel wire are manufactured by insulating the flexible air ducts made of aluminum with 25/50 mm-thick and 16kg/m3 density glass wool. Insulation material is covered with an aluminum outer jacket, that is with a moisture barrier.
Heat insulated flexible aluminum air ducts are extremely flexible, bendable and compressible. They are easy-to-assemble at oval, round and corner joints. Heat insulated flexible air ducts made of aluminum have a high level of fire resistance and they are non-combustible. They don't contain any hazardous substance that would emit toxic gases during a fire. Diameter range of heat insulated flexible ducts made of aluminum is Ø52 / Ø 780 mm . Their operating temperature ranges between 30 ° C / +150 ° C. Their nominal length is 10 m.
Polyester (Flexible) Air Ducts
Uninsulated polyester flexible air ducts are used in low or medium pressure heating, cooling, ventilation and air conditioning systems. They are manufactured from multilayered and laminated polyester material reinforced with high voltage spiral steel wire. Uninsulated polyester flexible air ducts are airtight. Uninsulated flexible polyester air ducts are extremely flexible, bendable and compressible. They are easy-to-assemble at oval, round and corner joints. Diameter range of uninsulated flexible air ducts made of polyester is Ø52 / Ø630 mm. Their operating temperature ranges between 30 ° C / +120 ° C. Their nominal length is 7.6 m.
Heat Insulated Polyester (Flexible) Air Ducts
Heat insulated polyester flexible air ducts are used in low or medium pressure heating, cooling, ventilation and air conditioning systems. The uninsulated flexible polyester air duct series manufactured from multilayered and laminated polyester or metallized polyester material reinforced with high voltage spiral steel wire and they are manufactured by insulating the flexible air ducts made of polyester with 25/50 mm-thick and 16kg/m3 density glass wool. Insulation material is covered with a metallized polyester outer jacket, that is with a moisture barrier.
Heat insulated flexible polyester air ducts are extremely flexible, bendable and compressible. They are easy-to-assemble at oval, round and corner joints. Diameter range of heat insulated flexible air ducts made of polyester is Ø52 / Ø630 mm. Their operating temperature ranges between 30 ° C / +120 ° C. Their nominal length is 7.6 m.
Reinforced PVC Industrial Flexible Air Ducts
Uninsulated PVC flexible industrial air ducts are used in low or medium pressure heating, cooling, ventilation, air conditioning and powder transfer systems. They can be used in systems that require excessive vibration or continuous mobility. They are made of highly resistant PVC strips reinforced with high voltage spiral steel wire. Uninsulated PVC flexible industrial air ducts are airtight.
Uninsulated flexible industrial air ducts made of PVC are extremely flexible, bendable and compressible. They are easy-to-assemble at oval, round and corner joints. Diameter range of uninsulated flexible air ducts made of PVCis Ø52 / Ø610 mm. Their operating temperature ranges between 30 ° C / +80 ° C. Their nominal length is 6/10 m.
Heat Insulated Industrial PVC Flexible Air Ducts
Heat insulated PVC flexible industrial air ducts are used in low or medium pressure heating, cooling, ventilation and air conditioning systems. They can be used in systems that require excessive vibration or continuous mobility. The extremely resistant and flexible PVC air duct series manufactured from PVC strips reinforced with high voltage spiral steel wire and they are manufactured by insulating the flexible air ducts made of PVC with 25/50 mm-thick and 16kg/m3 density glass wool. Heat insulated PVC flexible industrial air ducts are airtight. Insulation material is covered with moisture barrier.
Heat insulated flexible industrial air ducts made of PVC are extremely flexible, bendable and compressible. They are easy-to-assemble at oval, round and corner joints. Diameter range of heat insulated flexible industrial air ducts made of PVC is Ø52 / Ø610 mm. Their operating temperature ranges between 30 ° C / +80 ° C. Their nominal length is 6/10 m.
Aluminum PVC Combined (Flexible) Air Ducts
Aluminum PVC combined flexible) air ductsare used for welding smoke extraction, in systems where excessive condensation is possible, in spaces where dense chemical gases are present and for applications requiring high mechanical strength. Aluminum flexible air ducts are manufactured from multilayered and laminated aluminum material reinforced with high voltage spiral steel wire and they are tightly covered with a PVC jacket. PVC jacket increases mechanical strength and also serves as some kind of moisture barrier. The airtight aluminum PVC combined flexible air ducts are extremely suitable and efficient for heating, cooling, ventilating and air-conditioning systems.
Aluminum PVC combined (flexible) air ducts are extremely flexible, bendable and compressible. They are easy-to-assemble at oval, round and corner joints. Diameter range of the aluminum PVC combined (flexible) air ducts is Ø52 / Ø800 mm. Their operating temperature ranges between 30 ° C / +150 ° C. Their nominal length is 10 m.
Semi-Flexible Aluminum (Flexible) Air Ducts
Semi-flexible aluminum air ducts are used in low and medium pressure air transfer systems, exhaust gas applications and especially in applications where mechanical strength is needed. They are manufactured by shrinking pure metal aluminum strips with a special manufacture technique and clamping them together.
Semi-flexible aluminum air ducts can be easily bent, curled, stretched and flexed. They are easy-to-assemble at oval, round and corner joints. The clamp system used in semi-flexible aluminum air ducts is interlocked (double clamp system). In interlocked clamp system, the clamp gets stronger as the material is stretched. Pure metal aluminum strips don't diverge or deform during bending, curling, stretching and flexing. Semi-flexible aluminum air ducts are airtight and non-combustible. Diameter range of semi-flexible aluminum air ducts is Ø80 / Ø800 mm. The operating temperature is 25 ° C / +250 ° C. The nominal length is 1,5 - 3 - 6 m.
Heavy Duty Industrial PVC (Flexible) Air Ducts
Industrial flexible air ducts made of PVC are used in systems where high air velocity, high compressive strength and particularly vacuum is required. They can also be used to transfer coarse particles such as chips etc and in systems requiring excessive vibration and continuous mobility. They are manufactured from highly resistant PVC strips reinforced with high voltage spiral steel wire. They are airtight.
Flexible industrial air ducts made of PVC are extremely flexible, bendable and compressible. They are easy-to-assemble at oval, round and corner joints. Diameter range of industrial flexible air ducts made of PVC is Ø102 / Ø800 mm. Their operating temperature ranges between 30 ° C / +80 ° C. Their nominal length is 6/10 m.
Black-and-White Uninsulated Industrial Flexible Air Ducts
Black-and-white industrial PVC flexible air ducts are used in light industrial applications, and in law and medium pressure heating, cooling, ventilating and air-conditioning systems. They can be used in systems that require excessive vibration and continuous mobility. They are manufactured from PVC strips reinforced with high voltage spiral steel wire. Black-and-white PVC industrial flexible air ducts are airtight.
Black-and-white PVC industrial flexible air ducts are extremely flexible, bendable and compressible. They are easy-to-assemble at oval, round and corner joints. Diameter range of industrial flexible air ducts made of black-and-white PVC is Ø82 / Ø203 mm. Operating temperature of black PVC is -30 ° C / +80 ° C and -20 ° C / +70 ° C of white PVC. The nominal length is 6/10 m in black and 10 m in white.
