Bag & Compact Filters-22855

Product Code: 32

Precision Filters
Bag & Compact Filters

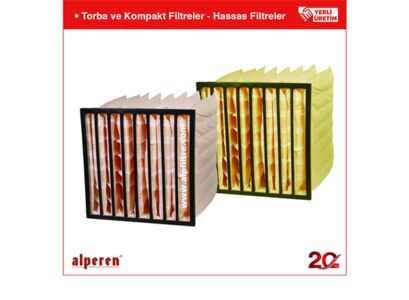

HTF•Precision Bag Filters
Aim of Use :Used as second stage dust arresting filter after prefiltration.
Features : Filter pockets were sown as small sized pockets with an eye to achieve maximum efficiency
from the entire surface area through employment ofsmall synthetic fiberseperators.
Area of Use : Used in ventilation applications requiring high efficiency and precision filtration.
Production Method:Produced fromsonic-welded, high-quality in the desired size, three-layer
syntheticfiltermaterial.
Efficiency Class :F5 (EU5) - F6 (EU6) - F7 (F7) - F8 (EU8) - F9 (EU9)
HTF / M : withGalvanized Frame
HTF / P : withPlastic Frame


KVF•Compact V Filters
Aim of Use :Used as second stage dust arresting filter after prefiltration.
Features : Large filter surface provides high air flow and low pressure loss. Can beusedsafely at high air flow thanks tolightweight and compact design.
Area of Use : Used in places requiring precise filtration such as hospitals, pharmaceutical factories, clean rooms, industrial facilities and etc.
Production Method:Produced from high-quality filter paper in standard sizes and placed in plastic frame
after being folded in mini pleat design.
Efficiency Class : F6 (EU6) - F7 (F7) - F8 (EU8)
F9 (EU9) - H10 (EU10)

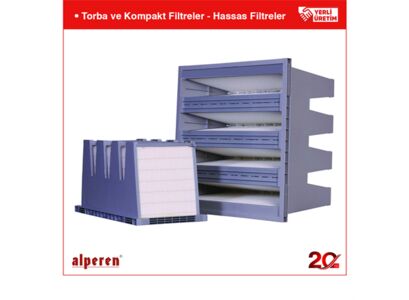

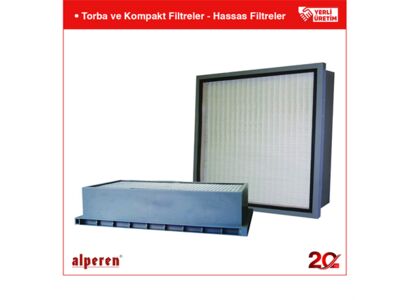

KPF•Compact Panel Filters
Aim of Use :Used as second stage dust arresting filter after prefiltration.
Features : Filters with single flange are easily used in applications
wheremounting cell is narrow.
Area of Use : Used in places requiring precise filtration such as hospitals, pharmaceutical factories, clean rooms, industrial facilities and etc.
Production Method:Produced in standard sizes with plastic frame resistantto aluminum, paper or heat
and impact.
Efficiency Class :F6 (EU6) - F7 (F7) - F8 (EU8) - F9 (EU9)
KPF / A : withAluminum Frame


ASF•Panel Filterswith Aluminum Separator
Aim of Use :Used as second stage dust arresting filter after prefiltration.
Features : Used for applications where high airflow and high operating temperatures exist
Area of Use : Used in places requiring precise filtration such as hospitals, pharmaceutical factories, clean rooms, industrial facilities and etc.
Production Method:Produced from filter paper in standard sizes, separated from each other by aluminum separatorsflangeless or with a single flange or with double flanges.
Efficiency Class :F6 (EU6) - F7 (F7) - F8 (EU8) - F9 (EU9)
KPF / P : withPlastic Frame
KPF / K : withCardboard Frame (flangeless)
